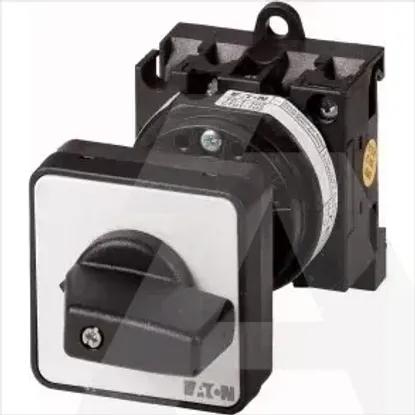

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height48mm
Width48mm
Number of poles0
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Depth128mm
Number of auxiliary contacts as change-over contact0
Number of switches1
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V5.5kW
Conditioned rated short-circuit current Iq6kA
Rated permanent current Iu20A
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V5.5kW
Motor drive integratedNo
Suitable for floor mountingYes
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Version as safety switchNo
Rated short-time withstand current lcw0.32kA
InterlockableNo
Version as main switchNo
Colour control elementBlack
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Version as reversing switchNo
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingYes
Voltage release optionalNo
Switching power at 400 V5.5kW
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
With pre-assembled cablingNo
