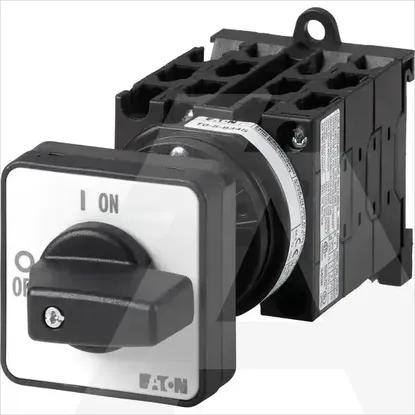

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth156mm
Rated permanent current Iu20A
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of switches1
Conditioned rated short-circuit current Iq6kA
Height48mm
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V5.5kW
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Number of poles0
Width48mm
Motor drive integratedNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Version as main switchNo
Version as maintenance-/service switchNo
Version as safety switchNo
Rated operation power at AC-23, 400 V5.5kW
Version as reversing switchNo
Rated short-time withstand current lcw0.32kA
Switching power at 400 V5.5kW
Colour control elementBlack
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
With pre-assembled cablingNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Suitable for front mounting centreNo
Degree of protection (NEMA)12
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Suitable for distribution board installationNo
