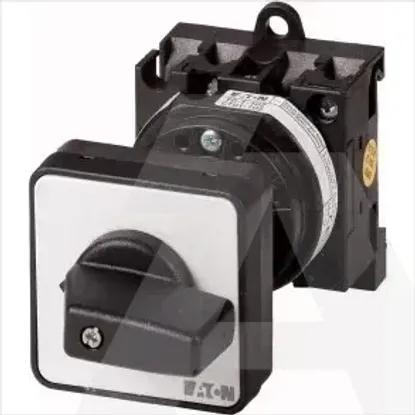

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth166mm
Width48mm
Height48mm
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP65
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementShort thumb-grip
Number of poles0
Motor drive integratedNo
Conditioned rated short-circuit current Iq6kA
Rated operation power at AC-23, 400 V5.5kW
Number of switches1
Type of electrical connection of main circuitScrew connection
Suitable for front mounting 4-holeNo
Rated permanent current Iu20A
Version as main switchNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchNo
InterlockableNo
Colour control elementBlack
Suitable for floor mountingYes
Suitable for front mounting centreNo
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw0.32kA
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Switching power at 400 V5.5kW
Voltage release optionalNo
Motor drive optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V13.3A
Rated permanent current at AC-21, 400 V20A
With pre-assembled cablingNo
Degree of protection (NEMA)12
