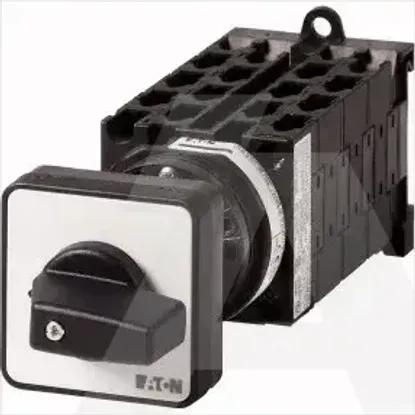

Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

InterlockableNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchNo
Type of electrical connection of main circuitScrew connection
Width48mm
Type of control elementShort thumb-grip
Depth185mm
Version as safety switchNo
Conditioned rated short-circuit current Iq6kA
Degree of protection (IP), front sideIP65
Rated operation power at AC-23, 400 V5.5kW
Rated operating voltage690 - 690V
Version as main switchNo
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Height48mm
Number of switches1
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V5.5kW
Version as emergency stop installationNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Rated short-time withstand current lcw0.32kA
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Suitable for floor mountingYes
With pre-assembled cablingNo
Version as reversing switchNo
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)12
Suitable for front mounting 4-holeNo
Switching power at 400 V5.5kW
Voltage release optionalNo
Suitable for intermediate mountingYes
Colour control elementBlack
Rated permanent current Iu20A
Number of poles0
Max. rated operation voltage Ue AC690V
