Details
- •Low-voltage industrial components

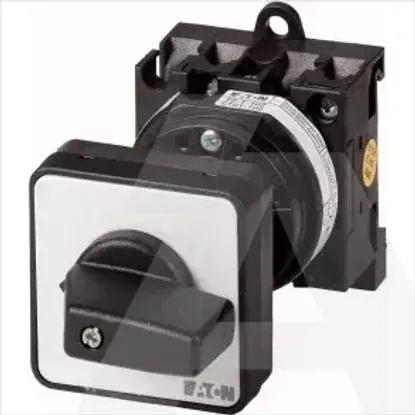

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as change-over contact0
Number of switches1
Rated operating voltage690 - 690V
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq6kA
InterlockableNo
Rated operation power at AC-3, 400 V5.5kW
Number of poles0
Rated permanent current Iu20A
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
Type of control elementToggle
Version as main switchNo
Suitable for floor mountingYes
Version as safety switchNo
Suitable for front mounting 4-holeNo
Colour control elementBlack
Rated short-time withstand current lcw0.32kA
Rated operation power at AC-23, 400 V5.5kW
Version as maintenance-/service switchNo
Suitable for front mounting centreNo
Voltage release optionalNo
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingYes
Degree of protection (NEMA)Other
