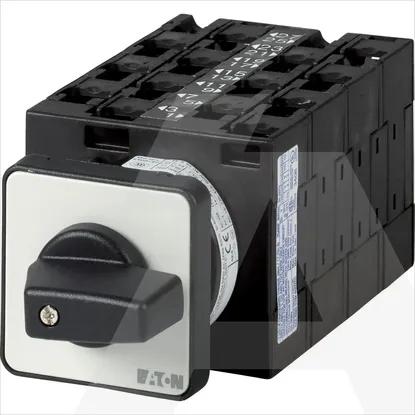

T3-7-SOND*/E
Code: 1044236
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as main switchNo
Version as maintenance-/service switchNo
Version as safety switchNo
Version as reversing switchNo
Number of switches1
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Rated operation power at AC-23, 400 V15kW
Rated operation power at AC-3, 400 V11kW
Rated operating voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Number of auxiliary contacts as normally open contact0
Suitable for distribution board installationNo
Conditioned rated short-circuit current Iq1kA
Suitable for front mounting centreNo
Voltage release optionalNo
Rated permanent current Iu32A
Rated short-time withstand current lcw0.65kA
Number of auxiliary contacts as change-over contact0
Suitable for intermediate mountingNo
Motor drive optionalNo
Rated permanent current at AC-23, 400 V32A
Number of auxiliary contacts as normally closed contact0
Type of control elementShort thumb-grip
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
InterlockableNo
Degree of protection (IP), front sideIP65
Width61mm
Depth148mm
Degree of protection (NEMA)12
Height54mm
