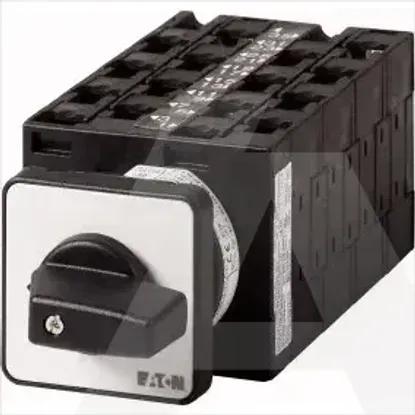

T3-8-SOND*/E
Code: 1044237
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as safety switchNo
Version as maintenance-/service switchNo
Version as main switchNo
Version as emergency stop installationNo
Number of switches1
Version as reversing switchNo
Rated permanent current Iu32A
Rated permanent current at AC-21, 400 V32A
Rated operating voltage690 - 690V
Rated permanent current at AC-23, 400 V32A
Rated operation power at AC-3, 400 V11kW
Switching power at 400 V15kW
Rated operation power at AC-23, 400 V15kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw0.65kA
Motor drive optionalNo
Conditioned rated short-circuit current Iq1kA
Voltage release optionalNo
Motor drive integratedNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
Type of control elementShort thumb-grip
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
InterlockableNo
Colour control elementBlack
Height54mm
Degree of protection (NEMA)12
Type of electrical connection of main circuitScrew connection
Depth160mm
Suitable for distribution board installationNo
Width61mm
