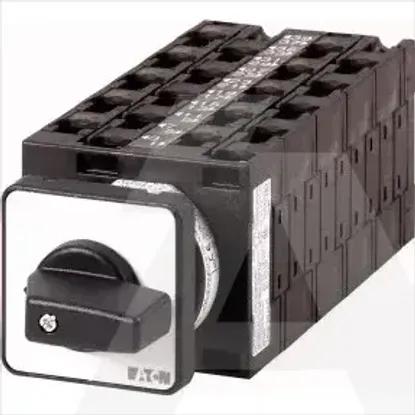

T3-10-SOND*/E
Code: 1044239
Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Version as main switchNo
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Number of switches1
Rated permanent current at AC-21, 400 V32A
Rated permanent current Iu32A
Rated short-time withstand current lcw0.65kA
Rated operation power at AC-3, 400 V11kW
Version as safety switchNo
Max. rated operation voltage Ue AC690V
Motor drive integratedNo
Rated operation power at AC-23, 400 V15kW
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Conditioned rated short-circuit current Iq1kA
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Version as reversing switchNo
Rated operating voltage690 - 690V
Type of control elementShort thumb-grip
Material housingPlastic
Type of electrical connection of main circuitScrew connection
Switching power at 400 V15kW
InterlockableNo
Rated permanent current at AC-23, 400 V32A
Degree of protection (IP), front sideIP65
Height54mm
Number of auxiliary contacts as normally closed contact0
With pre-assembled cablingNo
Depth183mm
Device constructionBuilt-in device fixed built-in technique
Colour control elementBlack
Suitable for intermediate mountingNo
Motor drive optionalNo
Degree of protection (NEMA)12
Width61mm
Suitable for front mounting centreNo
Colour housingBlack
Suitable for floor mountingNo
Number of auxiliary contacts as normally open contact0
