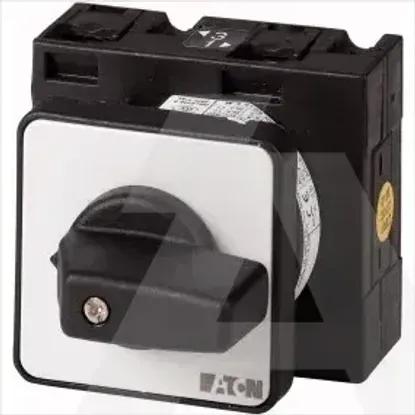

T3-3-SOND*/EZ
Code: 1044249
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as main switchNo
Version as emergency stop installationNo
Number of switches1
Version as reversing switchNo
Rated operation power at AC-3, 400 V11kW
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-23, 400 V32A
Version as maintenance-/service switchNo
Rated permanent current Iu32A
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-21, 400 V32A
Rated operating voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V15kW
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Motor drive integratedNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V15kW
Colour control elementBlack
Suitable for floor mountingNo
Degree of protection (IP), front sideIP65
Voltage release optionalNo
Type of control elementShort thumb-grip
InterlockableNo
Degree of protection (NEMA)12
Suitable for front mounting centreYes
Height54mm
Version as safety switchNo
Width61mm
Depth124mm
Number of auxiliary contacts as normally closed contact0
Rated short-time withstand current lcw0.65kA
Conditioned rated short-circuit current Iq1kA
