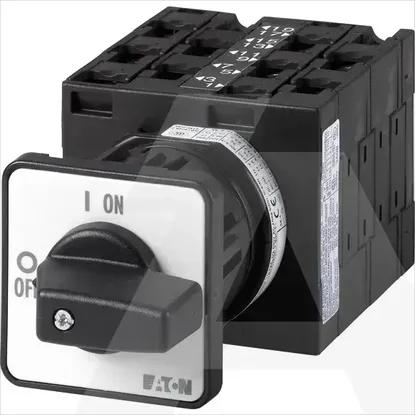

T3-5-SOND*/EZ
Code: 1044251
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as main switchNo
Version as reversing switchNo
Number of switches1
Version as emergency stop installationNo
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V11kW
Version as safety switchNo
Rated short-time withstand current lcw0.65kA
Version as maintenance-/service switchNo
Rated permanent current Iu32A
Rated permanent current at AC-23, 400 V32A
Rated permanent current at AC-21, 400 V32A
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V15kW
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq1kA
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Motor drive optionalNo
Switching power at 400 V15kW
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Colour control elementBlack
InterlockableNo
Suitable for front mounting centreYes
Suitable for distribution board installationNo
Degree of protection (IP), front sideIP65
Width61mm
Type of control elementShort thumb-grip
Depth147mm
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Height54mm
Degree of protection (NEMA)12
Related products
