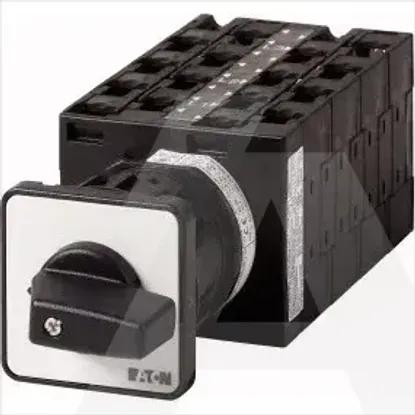

T3-8-SOND*/EZ
Code: 1044254
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Version as main switchNo
Version as safety switchNo
Version as emergency stop installationNo
Number of switches1
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Voltage release optionalNo
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Suitable for front mounting centreYes
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
Version as maintenance-/service switchNo
Version as reversing switchNo
Rated permanent current Iu32A
Rated permanent current at AC-23, 400 V32A
Rated permanent current at AC-21, 400 V32A
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated short-time withstand current lcw0.65kA
Switching power at 400 V15kW
Rated operation power at AC-23, 400 V15kW
Rated operation power at AC-3, 400 V11kW
Conditioned rated short-circuit current Iq1kA
InterlockableNo
Colour control elementBlack
Degree of protection (NEMA)12
With pre-assembled cablingNo
Width61mm
Degree of protection (IP), front sideIP65
Height54mm
Depth182mm
Related products
