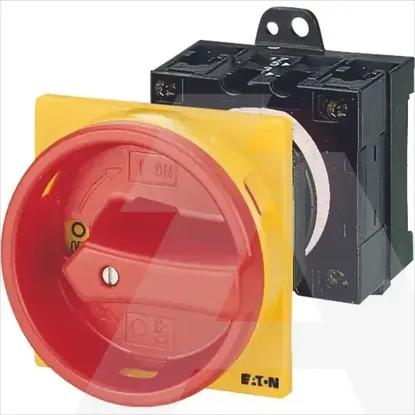

T3-4-SOND*/V/SVB
Code: 1044261
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as main switchYes
Version as emergency stop installationNo
Version as safety switchNo
Number of switches1
Version as reversing switchNo
Rated permanent current Iu32A
Rated operation power at AC-3, 400 V11kW
Rated operating voltage690 - 690V
Rated short-time withstand current lcw0.65kA
Rated operation power at AC-23, 400 V15kW
Rated permanent current at AC-21, 400 V32A
Version as maintenance-/service switchYes
Conditioned rated short-circuit current Iq1kA
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Suitable for front mounting centreNo
Switching power at 400 V15kW
Colour control elementRed
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
InterlockableYes
With pre-assembled cablingNo
Number of auxiliary contacts as normally closed contact0
Depth156mm
Width65mm
Height74mm
Degree of protection (NEMA)12
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V32A
Degree of protection (IP), front sideIP65
