Details
- •Low-voltage industrial components

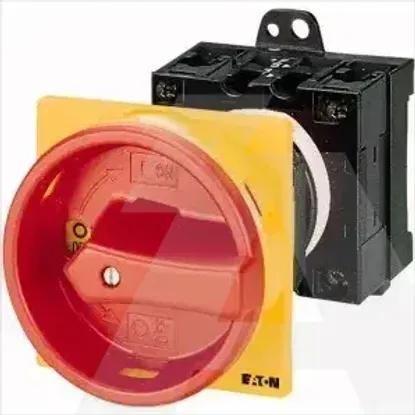

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Conditioned rated short-circuit current Iq1kA
Rated operating voltage690 - 690V
Number of poles0
Rated operation power at AC-3, 400 V11kW
Rated permanent current Iu32A
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Device constructionBuilt-in device fixed built-in technique
Version as main switchYes
Switching power at 400 V15kW
Colour control elementRed
Number of auxiliary contacts as change-over contact0
Version as reversing switchNo
Version as safety switchNo
Suitable for front mounting centreNo
Suitable for floor mountingYes
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Type of control elementDoor coupling rotary drive
Suitable for intermediate mountingYes
Rated short-time withstand current lcw0.65kA
Number of switches1
Motor drive integratedNo
Version as emergency stop installationNo
Suitable for distribution board installationNo
InterlockableYes
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Rated permanent current at AC-21, 400 V32A
Rated operation power at AC-23, 400 V15kW
Rated permanent current at AC-23, 400 V32A
Degree of protection (NEMA)Other
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-5-SOND*/V/SVB
