Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Number of poles0
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Version as main switchNo
Version as emergency stop installationNo
Number of switches1
Rated operating voltage690 - 690V
Rated permanent current Iu32A
Version as safety switchNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V32A
Rated short-time withstand current lcw0.65kA
Rated operation power at AC-23, 400 V15kW
Rated operation power at AC-3, 400 V11kW
Rated permanent current at AC-23, 400 V32A
Conditioned rated short-circuit current Iq1kA
Motor drive optionalNo
Switching power at 400 V15kW
Motor drive integratedNo
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Colour control elementBlack
Suitable for distribution board installationNo
Number of auxiliary contacts as normally closed contact0
Device constructionBuilt-in device fixed built-in technique
Type of control elementShort thumb-grip
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingYes
InterlockableNo
Suitable for intermediate mountingYes
Degree of protection (IP), front sideIP00
With pre-assembled cablingNo
Depth74mm
Height54mm
Degree of protection (NEMA)Other
Width61mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T3-3-SOND*/XZ

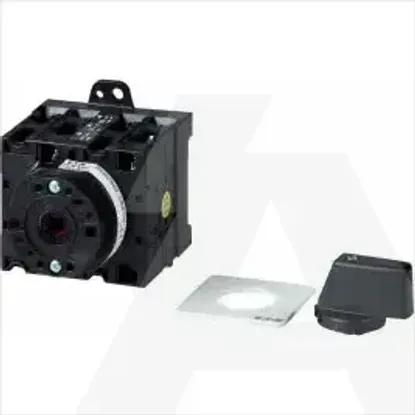

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Number of poles

0

Max. rated operation voltage Ue AC

690V

Version as maintenance-/service switch

Version as main switch

Version as emergency stop installation

Number of switches

1

Rated operating voltage

690 .. 690V

Rated permanent current Iu

32A

Version as safety switch

Version as reversing switch

Rated permanent current at AC-21, 400 V

32A

Rated short-time withstand current lcw

0.65kA

Rated operation power at AC-23, 400 V

15kW

Rated operation power at AC-3, 400 V

11kW

Rated permanent current at AC-23, 400 V

32A

Conditioned rated short-circuit current Iq

1kA

Motor drive optional

Switching power at 400 V

15kW

Motor drive integrated

Suitable for front mounting centre

Number of auxiliary contacts as change-over contact

0

Voltage release optional

Number of auxiliary contacts as normally open contact

0

Colour control element

Black

Suitable for distribution board installation

Number of auxiliary contacts as normally closed contact

0

Device construction

Built-in device fixed built-in technique

Type of control element

Short thumb-grip

Suitable for front mounting 4-hole

Type of electrical connection of main circuit

Screw connection

Suitable for floor mounting

Interlockable

Suitable for intermediate mounting

Degree of protection (IP), front side

IP00

With pre-assembled cabling

Depth

74mm

Height

54mm

Degree of protection (NEMA)

Other

Width

61mm
