Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Number of poles0
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V11kW
Version as main switchNo
Rated short-time withstand current lcw0.65kA
Rated operation power at AC-23, 400 V15kW
Version as safety switchNo
Rated permanent current at AC-23, 400 V32A
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq1kA
Version as emergency stop installationNo
Switching power at 400 V15kW
Version as maintenance-/service switchNo
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Number of switches1
Suitable for front mounting centreNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Rated permanent current at AC-21, 400 V32A
Voltage release optionalNo
Rated permanent current Iu32A
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Colour control elementBlack
Degree of protection (IP), front sideIP65
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
InterlockableNo
Height54mm
Width61mm
With pre-assembled cablingNo
Depth190mm
Degree of protection (NEMA)12

Related products

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T3-7-SOND*/Z

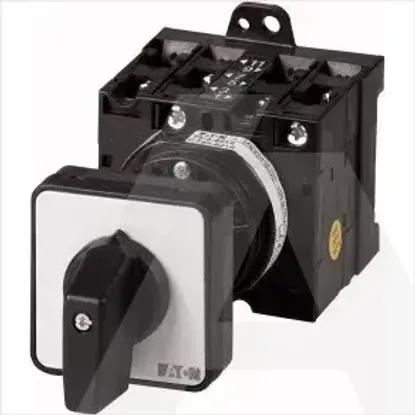

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Number of poles

0

Max. rated operation voltage Ue AC

690V

Version as reversing switch

Rated operating voltage

690 .. 690V

Rated operation power at AC-3, 400 V

11kW

Version as main switch

Rated short-time withstand current lcw

0.65kA

Rated operation power at AC-23, 400 V

15kW

Version as safety switch

Rated permanent current at AC-23, 400 V

32A

Number of auxiliary contacts as normally closed contact

0

Motor drive optional

Number of auxiliary contacts as change-over contact

0

Conditioned rated short-circuit current Iq

1kA

Version as emergency stop installation

Switching power at 400 V

15kW

Version as maintenance-/service switch

Motor drive integrated

Number of auxiliary contacts as normally open contact

0

Number of switches

1

Suitable for front mounting centre

Suitable for floor mounting

Suitable for front mounting 4-hole

Suitable for intermediate mounting

Rated permanent current at AC-21, 400 V

32A

Voltage release optional

Rated permanent current Iu

32A

Device construction

Built-in device fixed built-in technique

Suitable for distribution board installation

Colour control element

Black

Degree of protection (IP), front side

IP65

Type of control element

Short thumb-grip

Type of electrical connection of main circuit

Screw connection

Interlockable

Height

54mm

Width

61mm

With pre-assembled cabling

Depth

190mm

Degree of protection (NEMA)

12
