Details
- •Low-voltage industrial components

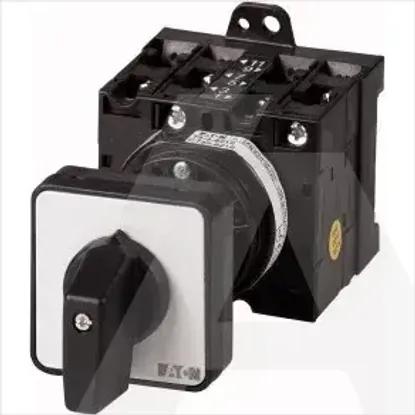

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Type of control elementToggle
Number of poles0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu32A
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V11kW
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Conditioned rated short-circuit current Iq1kA
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated short-time withstand current lcw0.65kA
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Version as reversing switchNo
Voltage release optionalNo
InterlockableNo
Version as maintenance-/service switchNo
Switching power at 400 V15kW
Number of switches1
Rated permanent current at AC-23, 400 V32A
Suitable for front mounting centreNo
Version as main switchNo
Version as safety switchNo
Rated permanent current at AC-21, 400 V32A
Rated operation power at AC-23, 400 V15kW
Colour control elementBlack
