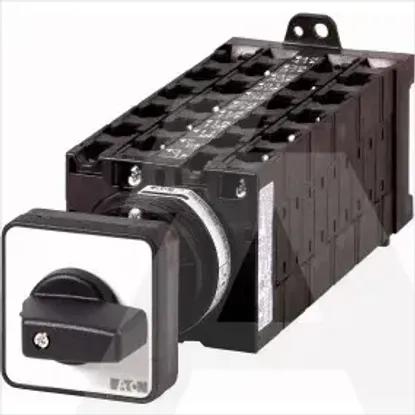

Details
- •Non standart switch, 32A
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V11kW
Conditioned rated short-circuit current Iq1kA
Version as emergency stop installationNo
InterlockableNo
Version as main switchNo
Number of auxiliary contacts as normally closed contact0
Version as maintenance-/service switchNo
Number of switches1
Type of control elementToggle
Rated operation power at AC-23, 400 V15kW
Rated operating voltage690 - 690V
Suitable for front mounting centreNo
Suitable for floor mountingYes
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Rated short-time withstand current lcw0.65kA
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Suitable for front mounting 4-holeNo
Version as safety switchNo
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Motor drive optionalNo
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V32A
Switching power at 400 V15kW
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V32A
Rated permanent current Iu32A
Number of poles0
Max. rated operation voltage Ue AC690V
