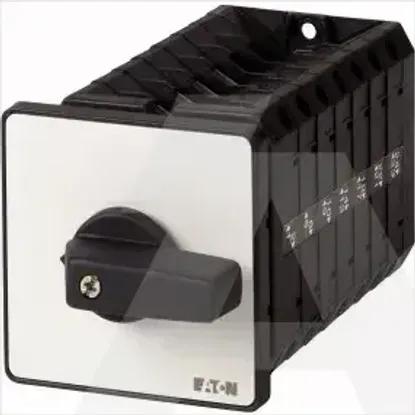

T5B-7-SOND*/E
Code: 1044292
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Version as safety switchNo
Version as emergency stop installationNo
Version as main switchNo
Rated operation power at AC-23, 400 V30kW
Number of switches1
Rated permanent current Iu63A
Rated short-time withstand current lcw1.3kA
Rated operation power at AC-3, 400 V22kW
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V63A
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-23, 400 V63A
Number of auxiliary contacts as change-over contact0
Version as reversing switchNo
Motor drive optionalNo
Motor drive integratedNo
Voltage release optionalNo
Switching power at 400 V30kW
Suitable for front mounting centreNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Suitable for intermediate mountingNo
With pre-assembled cablingNo
Height88mm
Depth190mm
InterlockableNo
Width88mm
Related products
