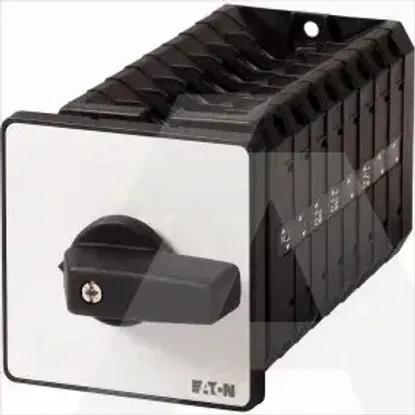

T5B-8-SOND*/E
Code: 1044293
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Number of switches1
Version as safety switchNo
Version as emergency stop installationNo
Rated permanent current at AC-21, 400 V63A
Rated operating voltage690 - 690V
Rated short-time withstand current lcw1.3kA
Rated operation power at AC-23, 400 V30kW
Motor drive optionalNo
Number of auxiliary contacts as normally open contact0
Conditioned rated short-circuit current Iq2kA
Device constructionBuilt-in device fixed built-in technique
Version as maintenance-/service switchNo
Suitable for floor mountingNo
Version as reversing switchNo
Suitable for front mounting 4-holeYes
Rated permanent current Iu63A
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V22kW
Suitable for distribution board installationNo
Voltage release optionalNo
Switching power at 400 V30kW
Rated permanent current at AC-23, 400 V63A
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Suitable for intermediate mountingNo
InterlockableNo
Type of control elementShort thumb-grip
Width88mm
Suitable for front mounting centreNo
Depth207mm
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Number of auxiliary contacts as change-over contact0
Height88mm
Motor drive integratedNo
Version as main switchNo
With pre-assembled cablingNo
