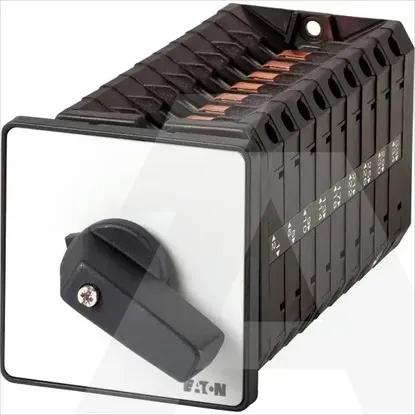

T5B-9-SOND*/E
Code: 1044294
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as main switchNo
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
Rated operating voltage690 - 690V
Rated operation power at AC-23, 400 V30kW
Rated operation power at AC-3, 400 V22kW
Rated short-time withstand current lcw1.3kA
Number of switches1
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu63A
Number of auxiliary contacts as normally open contact0
Switching power at 400 V30kW
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Rated permanent current at AC-21, 400 V63A
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Motor drive integratedNo
Motor drive optionalNo
Conditioned rated short-circuit current Iq2kA
Suitable for floor mountingNo
Type of electrical connection of main circuitScrew connection
Suitable for front mounting 4-holeYes
Type of control elementShort thumb-grip
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Device constructionBuilt-in device fixed built-in technique
InterlockableNo
With pre-assembled cablingNo
Voltage release optionalNo
Degree of protection (IP), front sideIP65
Width88mm
Height88mm
Degree of protection (NEMA)12
Depth223mm
Related products
