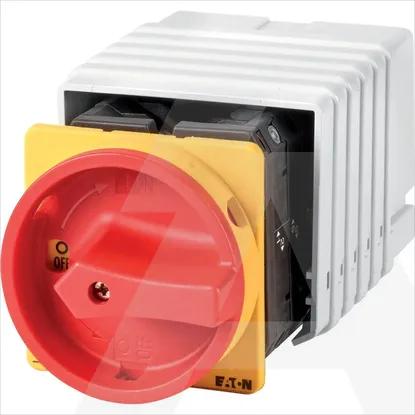

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Depth206mm
Height88mm
Width88mm
Number of switches1
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V22kW
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Motor drive integratedNo
Type of control elementDoor coupling rotary drive
Version as main switchYes
InterlockableYes
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Colour control elementRed
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Rated permanent current at AC-21, 400 V63A
Version as reversing switchNo
Suitable for intermediate mountingNo
Rated short-time withstand current lcw1.3kA
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V30kW
Switching power at 400 V30kW
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Motor drive optionalNo
Voltage release optionalNo
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V63A
With pre-assembled cablingNo
Degree of protection (NEMA)12
Rated permanent current Iu63A
Number of poles0
Max. rated operation voltage Ue AC690V
