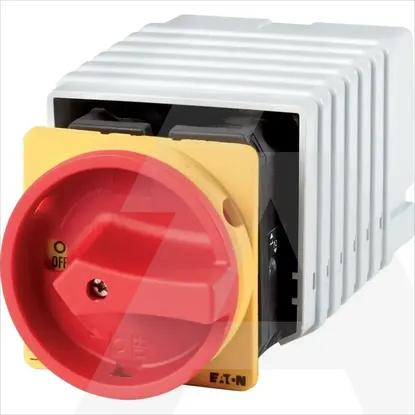

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Height88mm
Depth222mm
Number of poles0
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact0
InterlockableYes
Type of control elementDoor coupling rotary drive
Motor drive integratedNo
Version as safety switchNo
Number of switches1
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq2kA
Rated permanent current Iu63A
Rated operation power at AC-3, 400 V22kW
Colour control elementRed
Version as main switchYes
Width88mm
Rated operation power at AC-23, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw1.3kA
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V63A
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V63A
Switching power at 400 V30kW
