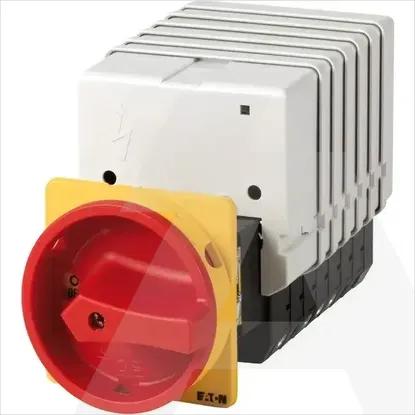

T5B-7-SOND*/V/SVB
Code: 1044310
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Rated permanent current Iu63A
Rated operating voltage690 - 690V
Version as main switchYes
Rated permanent current at AC-23, 400 V63A
Rated operation power at AC-23, 400 V30kW
Version as reversing switchNo
Conditioned rated short-circuit current Iq2kA
Number of switches1
Rated permanent current at AC-21, 400 V63A
Rated operation power at AC-3, 400 V22kW
Rated short-time withstand current lcw1.3kA
Switching power at 400 V30kW
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Voltage release optionalNo
Suitable for intermediate mountingYes
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationNo
Motor drive integratedNo
Colour control elementRed
Version as emergency stop installationNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Type of control elementDoor coupling rotary drive
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Degree of protection (NEMA)12
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
InterlockableYes
Depth237mm
Width88mm
Height88mm
Degree of protection (IP), front sideIP65
