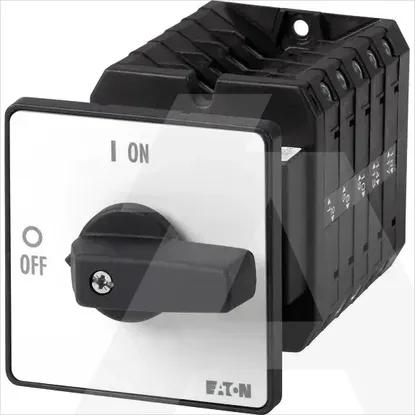

T5B-5-SOND*/Z
Code: 1044326
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as main switchNo
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Number of switches1
Version as reversing switchNo
Version as safety switchNo
Rated permanent current Iu63A
Rated permanent current at AC-21, 400 V63A
Rated short-time withstand current lcw1.3kA
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V22kW
Rated permanent current at AC-23, 400 V63A
Switching power at 400 V30kW
Rated operation power at AC-23, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Motor drive optionalNo
Conditioned rated short-circuit current Iq2kA
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Colour control elementBlack
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
InterlockableNo
Width88mm
Height88mm
Depth198mm
Degree of protection (NEMA)12
Related products
