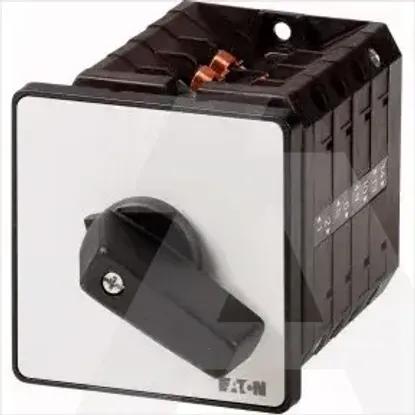

T5-3-SOND*/E
Code: 1044334
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as maintenance-/service switchNo
Version as main switchNo
Rated permanent current at AC-23, 400 V100A
Rated permanent current Iu100A
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Version as reversing switchNo
Version as safety switchNo
Number of switches1
Rated permanent current at AC-21, 400 V100A
Rated operation power at AC-3, 400 V30kW
Rated short-time withstand current lcw1.7kA
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V55kW
Number of auxiliary contacts as normally closed contact0
Switching power at 400 V55kW
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq2kA
Voltage release optionalNo
Suitable for floor mountingNo
Type of control elementShort thumb-grip
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
InterlockableNo
Width88mm
Suitable for distribution board installationNo
Suitable for front mounting 4-holeYes
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Height88mm
Degree of protection (NEMA)12
Colour control elementBlack
Depth124mm
Related products
