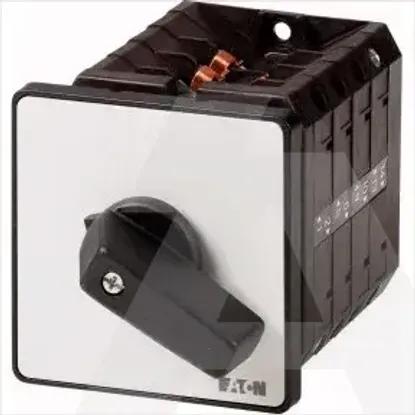

T5-5-SOND*/E
Code: 1044336
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Type of control elementToggle
Number of poles0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu100A
Motor drive integratedNo
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V30kW
Degree of protection (IP), front sideIP65
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Conditioned rated short-circuit current Iq2kA
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated short-time withstand current lcw1.7kA
Version as reversing switchNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Version as emergency stop installationNo
InterlockableNo
Version as maintenance-/service switchNo
Switching power at 400 V55kW
Number of switches1
Rated permanent current at AC-23, 400 V100A
Version as main switchNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V55kW
Version as safety switchNo
Rated permanent current at AC-21, 400 V100A
Colour control elementBlack
