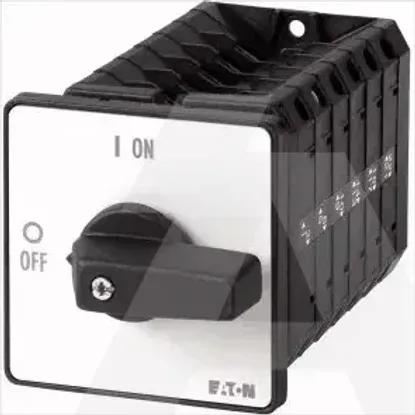

T5-6-SOND*/E
Code: 1044337
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Rated permanent current Iu100A
Version as maintenance-/service switchNo
Number of switches1
Rated operation power at AC-3, 400 V30kW
Version as main switchNo
Rated operating voltage690 - 690V
Version as safety switchNo
Suitable for front mounting 4-holeYes
Device constructionBuilt-in device fixed built-in technique
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-21, 400 V100A
Motor drive integratedNo
Conditioned rated short-circuit current Iq2kA
Voltage release optionalNo
Switching power at 400 V55kW
Number of auxiliary contacts as normally closed contact0
Rated permanent current at AC-23, 400 V100A
Version as reversing switchNo
Rated operation power at AC-23, 400 V55kW
Version as emergency stop installationNo
Rated short-time withstand current lcw1.7kA
Suitable for floor mountingNo
Suitable for distribution board installationNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Width88mm
Type of control elementShort thumb-grip
Height88mm
Degree of protection (IP), front sideIP65
Suitable for front mounting centreNo
Type of electrical connection of main circuitScrew connection
InterlockableNo
Depth174mm
Colour control elementBlack
Suitable for intermediate mountingNo
Related products
