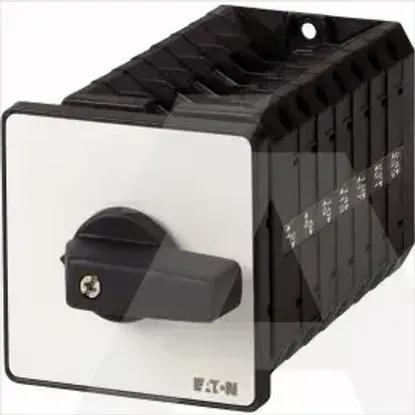

T5-7-SOND*/E
Code: 1044338
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Version as safety switchNo
Version as emergency stop installationNo
Version as maintenance-/service switchNo
Rated permanent current Iu100A
Rated permanent current at AC-21, 400 V100A
Rated short-time withstand current lcw1.7kA
Switching power at 400 V55kW
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq2kA
Version as reversing switchNo
Rated operation power at AC-3, 400 V30kW
Version as main switchNo
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V55kW
Number of auxiliary contacts as normally open contact0
Number of switches1
Suitable for front mounting 4-holeYes
Suitable for intermediate mountingNo
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Colour control elementBlack
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V100A
Type of control elementShort thumb-grip
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)12
Suitable for distribution board installationNo
Width88mm
Suitable for front mounting centreNo
Depth190mm
Motor drive integratedNo
Height88mm
Voltage release optionalNo
Suitable for floor mountingNo
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
