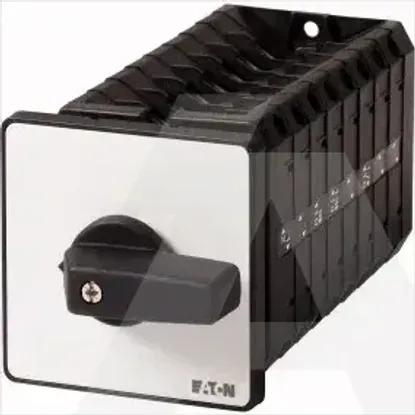

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V30kW
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq2kA
Number of switches1
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of poles0
Rated operating voltage690 - 690V
Version as maintenance-/service switchNo
Suitable for floor mountingNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Colour control elementBlack
Type of control elementToggle
Motor drive optionalNo
Version as main switchNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeYes
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Suitable for front mounting centreNo
Version as emergency stop installationNo
Rated short-time withstand current lcw1.7kA
Rated operation power at AC-23, 400 V55kW
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V100A
Version as reversing switchNo
Rated permanent current at AC-23, 400 V100A
Degree of protection (NEMA)Other
Switching power at 400 V55kW
Version as safety switchNo
