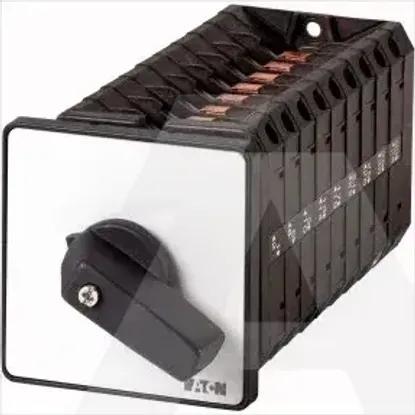

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Rated permanent current Iu100A
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Number of poles0
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
Type of control elementToggle
Degree of protection (IP), front sideIP65
Version as maintenance-/service switchNo
Version as safety switchNo
Type of electrical connection of main circuitScrew connection
Version as main switchNo
InterlockableNo
Rated operation power at AC-23, 400 V55kW
Version as emergency stop installationNo
Number of switches1
Motor drive integratedNo
Rated permanent current at AC-21, 400 V100A
Colour control elementBlack
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Suitable for floor mountingNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Rated short-time withstand current lcw1.7kA
Suitable for intermediate mountingNo
Voltage release optionalNo
Switching power at 400 V55kW
Rated permanent current at AC-23, 400 V100A
Version as reversing switchNo
Degree of protection (NEMA)Other
