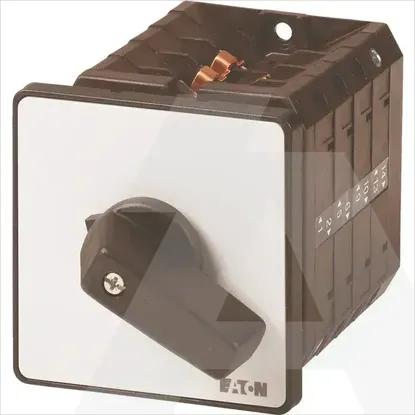

T5-10-SOND*/E
Code: 1044341
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of poles0
Max. rated operation voltage Ue AC690V
Rated permanent current Iu100A
Rated operating voltage690 - 690V
Number of switches1
Version as safety switchNo
Rated operation power at AC-3, 400 V30kW
Version as main switchNo
Version as maintenance-/service switchNo
Switching power at 400 V55kW
Rated permanent current at AC-23, 400 V100A
Rated permanent current at AC-21, 400 V100A
Version as reversing switchNo
Rated short-time withstand current lcw1.7kA
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V55kW
Motor drive optionalNo
Voltage release optionalNo
Suitable for front mounting centreNo
Number of auxiliary contacts as normally open contact0
Suitable for front mounting 4-holeYes
Device constructionBuilt-in device fixed built-in technique
Motor drive integratedNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
InterlockableNo
Height88mm
Depth240mm
Colour control elementBlack
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
Width88mm
