Details
- •Low-voltage industrial components

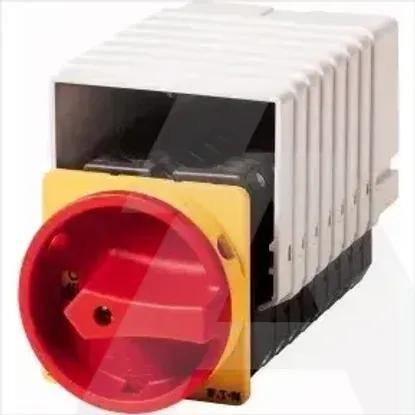

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu100A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq2kA
Rated operation power at AC-3, 400 V30kW
Number of poles0
Version as emergency stop installationNo
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Number of switches1
Degree of protection (IP), front sideIP65
Colour control elementRed
Max. rated operation voltage Ue AC690V
Suitable for front mounting 4-holeYes
Rated short-time withstand current lcw1.7kA
Device constructionBuilt-in device fixed built-in technique
Degree of protection (NEMA)Other
Version as main switchYes
Rated operation power at AC-23, 400 V55kW
Version as maintenance-/service switchYes
Voltage release optionalNo
Version as safety switchNo
Suitable for floor mountingNo
Version as reversing switchNo
Motor drive optionalNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V100A
Rated permanent current at AC-23, 400 V100A
Type of control elementDoor coupling rotary drive
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Switching power at 400 V55kW
