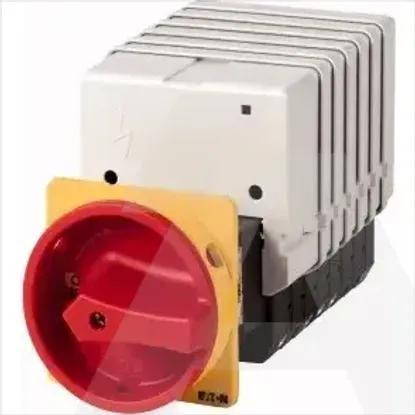

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Number of switches1
Motor drive integratedNo
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally open contact0
Number of poles0
Height88mm
Type of control elementDoor coupling rotary drive
InterlockableYes
Conditioned rated short-circuit current Iq2kA
Rated permanent current Iu100A
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Width88mm
Depth237mm
Version as safety switchNo
Rated permanent current at AC-21, 400 V100A
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Rated short-time withstand current lcw1.7kA
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Version as reversing switchNo
Suitable for front mounting centreNo
Rated operation power at AC-23, 400 V55kW
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V100A
Version as maintenance-/service switchYes
Degree of protection (NEMA)12
Suitable for distribution board installationNo
Colour control elementRed
Voltage release optionalNo
Version as main switchYes
Switching power at 400 V55kW
Motor drive optionalNo
