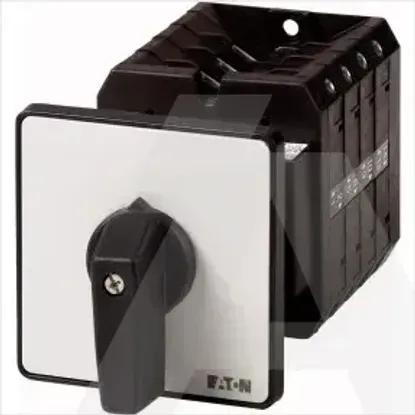

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width88mm
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu100A
Conditioned rated short-circuit current Iq2kA
Number of poles0
Rated operation power at AC-3, 400 V30kW
InterlockableNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Depth182mm
Number of switches1
Height88mm
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as main switchNo
Version as maintenance-/service switchNo
Suitable for intermediate mountingYes
Switching power at 400 V55kW
Colour control elementBlack
Motor drive optionalNo
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V55kW
Suitable for front mounting 4-holeNo
Voltage release optionalNo
Version as safety switchNo
Rated permanent current at AC-21, 400 V100A
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V100A
Rated short-time withstand current lcw1.7kA
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
Version as emergency stop installationNo
Suitable for floor mountingYes
Version as reversing switchNo
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
