Details
- •Low-voltage industrial components

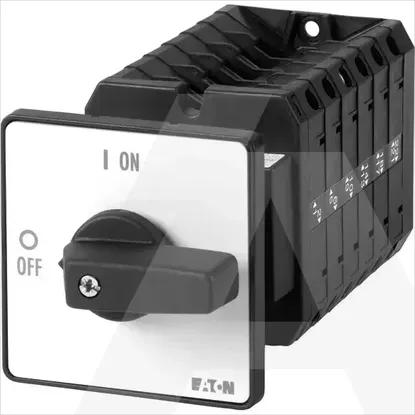

- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
InterlockableNo
Depth215mm
Width88mm
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Height88mm
Version as main switchNo
Version as safety switchNo
Type of control elementShort thumb-grip
Rated permanent current Iu100A
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V30kW
Conditioned rated short-circuit current Iq2kA
Motor drive integratedNo
Number of switches1
Type of electrical connection of main circuitScrew connection
Number of poles0
Rated short-time withstand current lcw1.7kA
Colour control elementBlack
Rated operation power at AC-23, 400 V55kW
Version as maintenance-/service switchNo
Suitable for intermediate mountingYes
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Suitable for front mounting 4-holeNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V100A
Switching power at 400 V55kW
Voltage release optionalNo
Degree of protection (NEMA)12
Suitable for distribution board installationNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V100A
Suitable for front mounting centreNo
Suitable for floor mountingYes
