Details

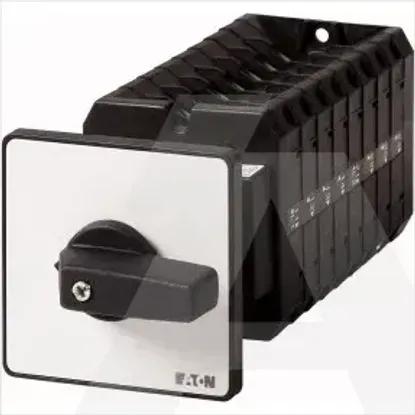

- •Non standart switch, 100A
- •Low-voltage industrial components
- •Switch disconnector
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq2kA
Number of switches1
Number of auxiliary contacts as change-over contact0
InterlockableNo
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Type of control elementToggle
Version as main switchNo
Version as safety switchNo
Rated operation power at AC-23, 400 V55kW
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw1.7kA
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Version as maintenance-/service switchNo
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V100A
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V100A
Version as reversing switchNo
Switching power at 400 V55kW
Rated permanent current Iu100A
Number of poles0
Max. rated operation voltage Ue AC690V
