Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Number of poles0
Version as main switchYes
Version as emergency stop installationNo
Version as reversing switchNo
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC690V
Number of switches1
Version as safety switchNo
Rated operating voltage690 - 690V
Rated permanent current Iu20A
Rated short-time withstand current lcw0.32kA
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Rated operation power at AC-23, 400 V5.5kW
Switching power at 400 V5.5kW
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V5.5kW
Motor drive optionalNo
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Suitable for distribution board installationNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Suitable for floor mountingNo
Motor drive integratedNo
Suitable for intermediate mountingNo
Colour control elementBlack
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
InterlockableYes
Height74mm
Depth111mm
Degree of protection (NEMA)12
Width65mm
Degree of protection (IP), front sideIP65

Related products

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-2-SOND*/EA/SVB-SW

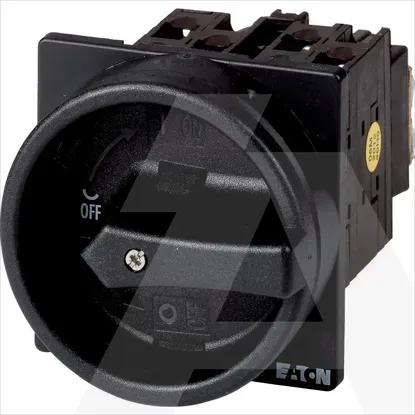

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Number of poles

0

Version as main switch

Version as emergency stop installation

Version as reversing switch

Version as maintenance-/service switch

Max. rated operation voltage Ue AC

690V

Number of switches

1

Version as safety switch

Rated operating voltage

690 .. 690V

Rated permanent current Iu

20A

Rated short-time withstand current lcw

0.32kA

Rated permanent current at AC-21, 400 V

20A

Rated permanent current at AC-23, 400 V

13.3A

Rated operation power at AC-23, 400 V

5.5kW

Switching power at 400 V

5.5kW

Number of auxiliary contacts as normally open contact

0

Rated operation power at AC-3, 400 V

5.5kW

Motor drive optional

Conditioned rated short-circuit current Iq

6kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Suitable for distribution board installation

Suitable for front mounting 4-hole

Voltage release optional

Device construction

Built-in device fixed built-in technique

Suitable for front mounting centre

Suitable for floor mounting

Motor drive integrated

Suitable for intermediate mounting

Colour control element

Black

With pre-assembled cabling

Type of electrical connection of main circuit

Screw connection

Type of control element

Door coupling rotary drive

Interlockable

Height

74mm

Depth

111mm

Degree of protection (NEMA)

12

Width

65mm

Degree of protection (IP), front side

IP65
