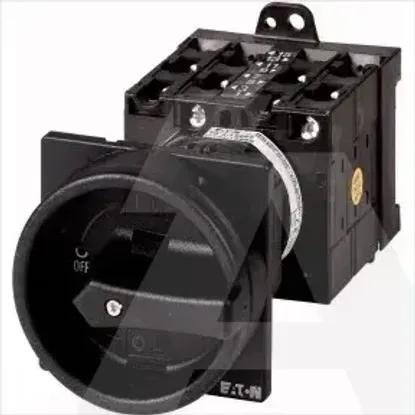

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of poles0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu32A
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq1kA
Degree of protection (IP), front sideIP65
Rated operation power at AC-3, 400 V11kW
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Version as reversing switchNo
Suitable for intermediate mountingYes
Version as safety switchNo
Rated short-time withstand current lcw0.65kA
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V15kW
Switching power at 400 V15kW
Rated permanent current at AC-21, 400 V32A
Number of switches1
InterlockableYes
Rated permanent current at AC-23, 400 V32A
Version as emergency stop installationNo
Motor drive optionalNo
Colour control elementBlack
Motor drive integratedNo
Version as main switchYes
Version as maintenance-/service switchYes
Degree of protection (NEMA)Other
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T3-3-SOND*/V/SVB-SW
