Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Suitable for floor mountingNo
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Suitable for front mounting 4-holeYes
Rated operation power at AC-23, 400 V30kW
Rated permanent current Iu63A
Number of switches1
Version as maintenance-/service switchYes
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Rated operation power at AC-3, 400 V22kW
Suitable for front mounting centreNo
Version as emergency stop installationNo
Conditioned rated short-circuit current Iq2kA
Colour control elementBlack
InterlockableYes
Motor drive integratedNo
Rated short-time withstand current lcw1.3kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of poles0
Degree of protection (IP), front sideIP65
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V63A
Rated permanent current at AC-21, 400 V63A
Suitable for distribution board installationNo
Motor drive optionalNo
Version as reversing switchNo
Suitable for intermediate mountingNo
Switching power at 400 V30kW
Max. rated operation voltage Ue AC690V
Degree of protection (NEMA)Other
Voltage release optionalNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

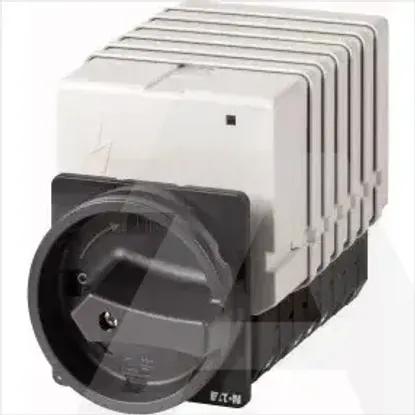

T5B-7-SOND*/EA/SVB-SW
