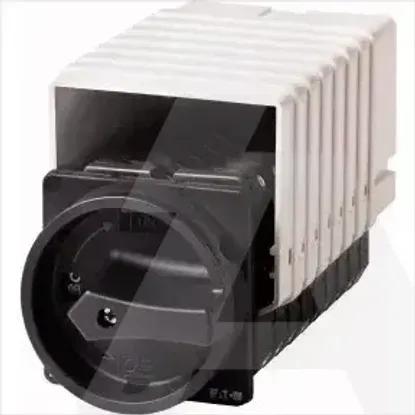

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
InterlockableYes
Rated permanent current Iu100A
Number of poles0
Rated operation power at AC-3, 400 V30kW
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq2kA
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Type of control elementDoor coupling rotary drive
Rated operation power at AC-23, 400 V55kW
Rated short-time withstand current lcw1.7kA
Suitable for floor mountingNo
Number of switches1
Motor drive integratedNo
Colour control elementBlack
Version as safety switchNo
Suitable for distribution board installationNo
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Version as main switchYes
Version as maintenance-/service switchYes
Voltage release optionalNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V100A
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V100A
Suitable for intermediate mountingNo
Device constructionBuilt-in device fixed built-in technique
Version as reversing switchNo
Switching power at 400 V55kW
