Details
- •Low-voltage industrial components

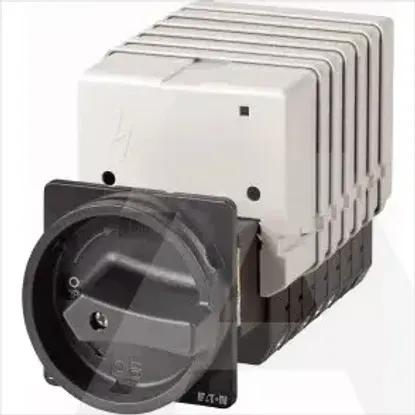

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V30kW
Version as maintenance-/service switchYes
Degree of protection (IP), front sideIP65
Rated operation power at AC-23, 400 V55kW
Conditioned rated short-circuit current Iq2kA
Number of auxiliary contacts as change-over contact0
Number of poles0
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Type of control elementDoor coupling rotary drive
Version as safety switchNo
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Number of switches1
Number of auxiliary contacts as normally closed contact0
InterlockableYes
Version as main switchYes
Rated permanent current Iu100A
Rated short-time withstand current lcw1.7kA
Colour control elementBlack
Suitable for intermediate mountingYes
Rated permanent current at AC-21, 400 V100A
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V100A
Motor drive optionalNo
Suitable for floor mountingYes
Version as reversing switchNo
Switching power at 400 V55kW
Device constructionBuilt-in device fixed built-in technique
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
