Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of poles0
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu100A
Motor drive integratedNo
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 400 V30kW
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Conditioned rated short-circuit current Iq2kA
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated short-time withstand current lcw1.7kA
Rated operation power at AC-23, 400 V55kW
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Suitable for front mounting centreNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V100A
Voltage release optionalNo
InterlockableYes
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V100A
Colour control elementBlack
Version as main switchYes
Version as safety switchNo
Switching power at 400 V55kW
Number of switches1

Related products

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T5-8-SOND*/V/SVB-SW

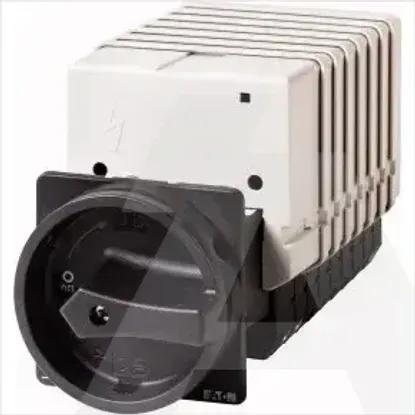

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • EATON

Technical specifications

Number of poles

0

Type of control element

Door coupling rotary drive

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Rated permanent current Iu

100A

Motor drive integrated

Motor drive optional

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as change-over contact

0

Device construction

Built-in device fixed built-in technique

Rated operation power at AC-3, 400 V

30kW

Degree of protection (IP), front side

IP65

Suitable for floor mounting

Suitable for intermediate mounting

Suitable for distribution board installation

Degree of protection (NEMA)

Other

Conditioned rated short-circuit current Iq

2kA

Max. rated operation voltage Ue AC

690V

Rated operating voltage

690 .. 690V

Rated short-time withstand current lcw

1.7kA

Rated operation power at AC-23, 400 V

55kW

Suitable for front mounting 4-hole

Version as emergency stop installation

Suitable for front mounting centre

Version as reversing switch

Rated permanent current at AC-21, 400 V

100A

Voltage release optional

Interlockable

Version as maintenance-/service switch

Rated permanent current at AC-23, 400 V

100A

Colour control element

Black

Version as main switch

Version as safety switch

Switching power at 400 V

55kW

Number of switches

1
