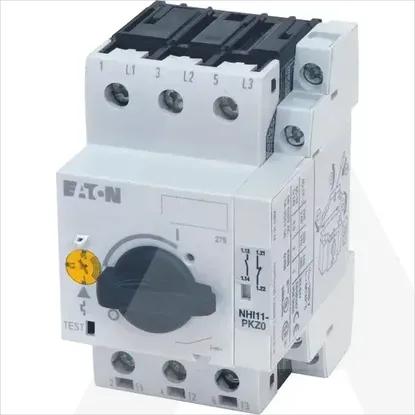

PKZM0-0,63/NHI11
Code: 1044686
ManufacturerEaton
Catalog number039431
TypePKZM0-0,63/NHI11
CategoryMotor protection circuit-breaker
EAN code4015080394310
Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Width54mm
Height93mm
Depth76mm
With integrated auxiliary switchYes
With thermal protectionYes
With integrated under voltage releaseNo
Switch off techniqueThermomagnetic
Degree of protection (IP)IP20
Rated operation power at AC-3, 230 V0.09kW
Adjustment range undelayed short-circuit release9.8 - 9.8A
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
Type of control elementTurn button
Phase failure sensitiveYes
Rated operation power at AC-3, 400 V0.12kW
Rated permanent current Iu0.63A
Number of poles3
Overload release current setting0.4 - 0.63A
Rated short-circuit breaking capacity lcu at 400 V, AC150kA
