Details
- •Low-voltage industrial components

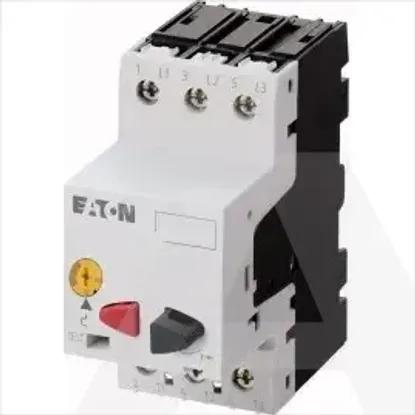

- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
With integrated auxiliary switchNo
Rated operation power at AC-3, 400 V1.5kW
With integrated under voltage releaseNo
Type of control elementPush button
Switch off techniqueThermomagnetic
Degree of protection (IP)IP20
Power loss5.33W
Type of electrical connection of main circuitScrew connection
Number of poles3
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
Device constructionBuilt-in device fixed built-in technique
Adjustment range undelayed short-circuit release2.5 - 4A
Width35mm
Height35mm
Rated permanent current Iu4A
With thermal protectionNo
Overload release current setting2.5 - 4A
Rated operating voltage690 - 690V
Rated operation power at AC-3, 230 V0.75kW
Depth35mm
Phase failure sensitiveYes
Related products
