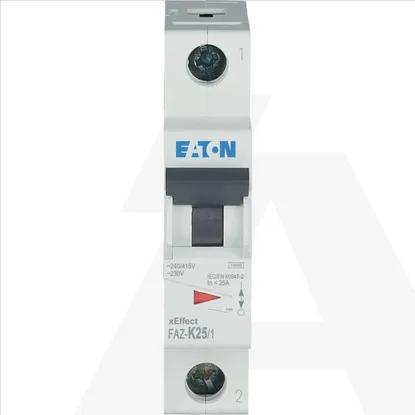

FAZ-K25/1
Code: 1047174
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Built-in depth70.5mm
Rated voltage230V
Rated current25A
Voltage typeAC
Release characteristicK
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Number of poles (total)1
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Connectable conductor cross section multi-wired1 - 25mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
Explosion-proofNo
Pollution degree2
Ambient temperature during operating-25 - 75°C
Concurrently switching neutral conductorNo
Power loss2.6W
Over voltage category3
Width in number of modular spacings1
Connectable conductor cross section solid-core1 - 25mm²
Current limiting class3
