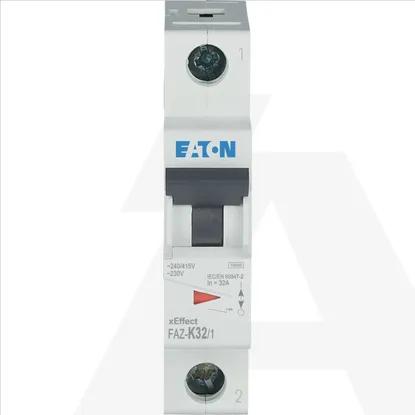

FAZ-K32/1
Code: 1047175
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Rated current32A
Rated insulation voltage Ui440V
Rated voltage230V
Release characteristicK
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Voltage typeAC
Frequency50 - 60Hz
Over voltage category3
Built-in depth70.5mm
Pollution degree2
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Connectable conductor cross section multi-wired1 - 25mm²
Number of poles (total)1
Width in number of modular spacings1
Ambient temperature during operating-25 - 75°C
Current limiting class3
Additional equipment possibleYes
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Connectable conductor cross section solid-core1 - 25mm²
Power loss3.1W
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
