Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Current limiting class3
Over voltage category3
Built-in depth70.5mm
Rated insulation voltage Ui440V
Power loss3.6W
Explosion-proofNo
Number of protected poles1
Voltage typeAC
Rated current16A
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 75°C
Concurrently switching neutral conductorNo
Pollution degree2
Release characteristicZ
Width in number of modular spacings1
Frequency50 - 60Hz
Rated voltage230V
Additional equipment possibleYes
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Flush-mounted installationNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Related products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

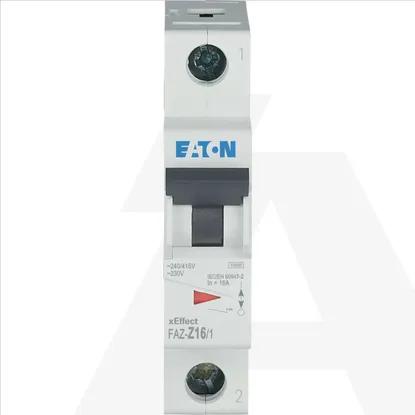

FAZ-Z16/1
