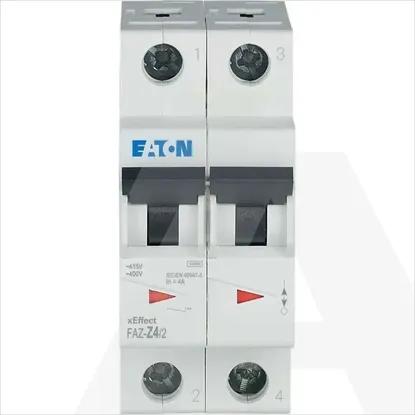

FAZ-Z4/2
Code: 1047287
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Number of poles (total)2
Release characteristicZ
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Voltage typeAC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Current limiting class3
Over voltage category3
Power loss8W
Concurrently switching neutral conductorNo
Pollution degree2
Additional equipment possibleYes
Flush-mounted installationNo
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Width in number of modular spacings2
Explosion-proofNo
Rated impulse withstand voltage Uimp4kV
Rated current4A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Built-in depth70.5mm
