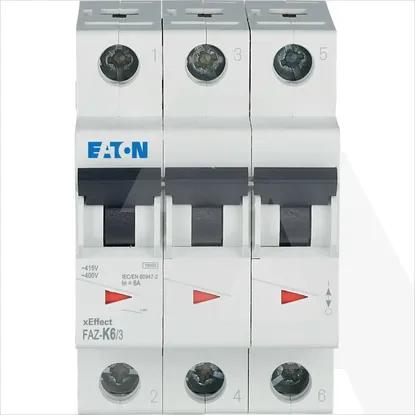

FAZ-K6/3
Code: 1047335
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Release characteristicK
Rated voltage400V
Built-in depth70.5mm
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Rated insulation voltage Ui440V
Number of poles (total)3
Current limiting class3
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Voltage typeAC
Rated current6A
Width in number of modular spacings3
Flush-mounted installationNo
Power loss6.9W
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 75°C
Pollution degree2
Explosion-proofNo
Connectable conductor cross section solid-core1 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Over voltage category3
Frequency50 - 60Hz
Degree of protection (IP)IP20
Additional equipment possibleYes
