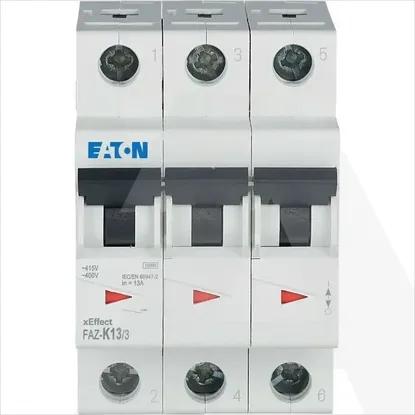

FAZ-K13/3
Code: 1047337
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •EATON
Technical specifications
Release characteristicK
Number of poles (total)3
Built-in depth70.5mm
Rated voltage400V
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Frequency50 - 60Hz
Additional equipment possibleYes
Flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V0kA
Power loss8.1W
Rated current13A
Concurrently switching neutral conductorNo
Rated insulation voltage Ui440V
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 25mm²
Current limiting class3
Connectable conductor cross section multi-wired1 - 25mm²
Explosion-proofNo
Width in number of modular spacings3
Number of protected poles3
Ambient temperature during operating-25 - 75°C
Over voltage category3
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V0kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
FAZ-K13/3
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Release characteristic
K
Number of poles (total)
3
Built-in depth
70.5mm
Rated voltage
400V
Voltage type
AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Rated impulse withstand voltage Uimp
4kV
Frequency
50 .. 60Hz
Additional equipment possible
Flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
0kA
Power loss
8.1W
Rated current
13A
Concurrently switching neutral conductor
Rated insulation voltage Ui
440V
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
1 .. 25mm²
Current limiting class
3
Connectable conductor cross section multi-wired
1 .. 25mm²
Explosion-proof
Width in number of modular spacings
3
Number of protected poles
3
Ambient temperature during operating
-25 .. 75°C
Over voltage category
3
Pollution degree
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
0kA
